We have redesigned this Ikuma model to offer improved performance and an even more exciting flying experience. Technically improved as a hybrid 3/2-liner, compared to the Ikuma 2 P, drag has been reduced by 8%.
Ikuma 3 P
EN/LTF B +
3-LINER
CROSS COUNTRY
HIKE & FLY
PROGRESSION
Begginer
Intermediate
High
EN/LTF B +
3-LINER
Begginer
Intermediate
High
CROSS COUNTRYHIKE & FLYPROGRESSIONMAKE LIGHT OF ANY CHALLENGE
Performance, lightness and durability go hand in hand with the new Ikuma 3 P. Intuitive and accessible, you can push your own limits with the ultra-light version of our high performance EN B+ wing. Perfect for everyday XC and hike & fly, the internal structure has been optimised to minimise the overall weight of the glider while maintaining durability.
From 3 kg.
Usable performance
Light and confidence inspiring
Enhanced manoeuvrability
Target
Progression
Complete your training phase with a glider that will allow you to polish your skills and gain confidence flight after flight.
Hike & fly
The Ikuma 3 P is also the perfect partner in your hike & fly adventures. Its lightness will allow you to reach new heights.
Cross-country
Explore long distance flying with confidence, thanks to this high performance EN-B wing that will provide safety and control.
Ikuma 3 P
In detail
Real performance
Optimised manoeuvrability
We have improved the response at the top of the brakes to provide more direct and comfortable steering. The Ikuma 3 P is manoeuvrable and responds predictably to the pilot’s inputs, making it more enjoyable to fly.
Unparalleled lightness
State-of-the-art ultralight materials have been used throughout the wing to achieve the perfect balance between weight and durability. As a result, the canopy weighs only 3.15 kg (size 22).
Safety, our top priority
Thanks to the Niviuk technologies applied, the Ikuma 3 P is a high performance glider, but we have kept its high passive safety.
More stable
The Ikuma 3 P stands out for its improved pitch stability. Explore altitude with confidence and exceptional performance.
Maximum comfort
Comfort is key and the Ikuma 3 P offers it in abundance, even improving the flying experience compared to its predecessor.
Real performance
We have redesigned this Ikuma model to offer improved performance and an even more exciting flying experience. Technically improved as a hybrid 3/2-liner, compared to the Ikuma 2 P, drag has been reduced by 8%.
Optimised manoeuvrability
We have improved the response at the top of the brakes to provide more direct and comfortable steering. The Ikuma 3 P is manoeuvrable and responds predictably to the pilot’s inputs, making it more enjoyable to fly.
Unparalleled lightness
State-of-the-art ultralight materials have been used throughout the wing to achieve the perfect balance between weight and durability. As a result, the canopy weighs only 3.15 kg (size 22).
Safety, our top priority
Thanks to the Niviuk technologies applied, the Ikuma 3 P is a high performance glider, but we have kept its high passive safety.
More stable
The Ikuma 3 P stands out for its improved pitch stability. Explore altitude with confidence and exceptional performance.
Maximum comfort
Comfort is key and the Ikuma 3 P offers it in abundance, even improving the flying experience compared to its predecessor.
Niviuk Technologies
Optimised C2B system
Hybrid 3/2-liner
IKS 1000 connection system
Improved DRS integration
Perfected aerodynamic profile
New Nitinol rod distribution
Stability at any angle of attack
Structured Leading Edge
Nitinol rods in the leading edge make up the SLE. This technology provides greater solidity and stability to maintain its shape in all phases of flight. This increases performance, efficiency and stability, absorbs turbulence better and makes the wing much more durable over time.
3D Leading Edge
3DL technology is an adjustment of the fabric at the leading edge of the wing to control the ballooning and the creases that are generated by the curvature in this area. The leading edge is then divided into sub-panels which are sewn into each of the cells at the front of the paraglider. As a result, the leading edge of the wing is perfectly tensioned, which benefits the wing in performance and durability.
A good comparison is a rugby ball. In order to produce its characteristic oval shape without creases, its cover is made of several panels – not of just one piece.
The application of this innovation, in conjunction with the 3DP, is key to converting the perfect shape from 2D to 3D.
RAM Air Intake
The RAM Air Intake system is based on the inward orientation of the air inlets in the profile so that they allow an optimum internal pressure at all angles of attack.
The result? Having greater internal pressure means better buffering of turbulence, greater consistency of the profile shape across the speed range. Excellent handling at low speed is achieved by allowing the pilot to extend the braking limit, so there is a lower risk of collapse and consequently, greater control and stability.
Radial Sliced Diagonal
RSD (Radial Sliced Diagonal) technology is a reinvention of the wing’s internal structure. It incorporates independent and efficiently oriented diagonal ribs, which follow the direction of the cloth. This improves the strength, reduces weight and minimises deformation.
These days, in order to improve stress distribution and reduce the number of attachment points and lines, most wings have these diagonal ribs, which are connected from the attachment points to the adjacent profiles.
In conventional diagonal ribs, loading and unloading cycles away from the highest strength axis of the cloth result in a loss of shape, which reduces the cohesion of the wing and therefore aerodynamic efficiency.
3D Pattern Cut Optimization
This technology seeks to implement the best orientation of the cloth on each panel according to its location on the leading edge. Â If the cloth pattern is correctly aligned with the load axes, the cloth suffers less deformation flight after flight, so the leading edge maintains its shape better and remains stronger over time.
The design of our paraglider and paramotor wings has evolved a lot over the years, with a positive and specific focus on the leading edge.
Thanks to this technology and 3DL, a perfect modelling of the panels and an exact representation from 2D to 3D is achieved.
Drag Reduction Structure
The DRS aims to reduce drag and the adverse pressure gradient by optimising the aerodynamic shape of the wing. With its application, the direction of airflow is much more progressive at the trailing edge. This increases performance without compromising safety or handling.
Interlock System
The IKS (Interlock System) is a system to connect the risers with different parts of the wing, such as the lines, the harness or the parachute. This technology stands out for its innovation in lightness, optimising both the glider and the equipment in general, without compromising efficiency or the level of safety.
Niviuk has developed three variants: the IKS 1000, the Easy IKS 2500 and the IKS 3000, each intended to connect different parts of the paraglider.
✓ IKS 1000: risers to lines
The IKS 1000 is designed to connect risers to the lines. It can carry up to 1055 kg, which is far more than the 550 kg of the classic 3 mm maillons, but weighs much less. This makes it an essential part of our entire range of P Series (plume/light) wings, which already come with this technology as standard.
✓ Easy IKS 2500: risers to harness
The Easy IKS 2500 is a lightweight attachment system designed to connect the risers to the harness. It can carry up to 2673 kg and is made of Dyneema, making it very strong and durable. It is the perfect ultra-lightweight alternative to the twist-lock aluminium carabiner (with a maximum load of 2000 kg). The design and application of this connector makes it ideal for mountain harnesses and wings, and light flying gear.
Watch here the video tutorial with the user manual to learn how to use the Easy IKS 2500.
Download the Easy IKS 2500 certification report here.
✓ IKS 3000: parachute to harness
Finally, the IKS 3000 is used to connect the parachute to the harness. It can also be used to connect the risers to the harness, as an alternative to the Easy IKS 2500. It can carry up to 2960 kg, making it an ultra-light alternative to the 7 mm maillon (which can carry 3125 kg) or the twist-lock aluminium carabiner (with a maximum load of 2000 kg). The design and application of this connector is ideal for mountain wings and lightweight equipment.
Titanium Technology
Nitinol is a combination of 50% nickel and 50% titanium. The incorporation of Nitinol rods in the profile increases the performance of the wing, especially in three areas:
- Compared to nylon rods, the weight of the wing is reduced by 13%.
- Nitinol has two essential characteristics: shape memory and enormous elasticity. As a result, the rods retain their optimum shape even after an ultra-compact or incorrect folding, so that the wing is not deformed. This will always be the case unless the radius at the point of curvature is less than 1 cm.
- The leading edge shape is much more rigid and uniform which results in a much more consistent and progressive inflation and therefore an easier take off. The profile is taut at all times, without creases, and fully optimised for all flight phases.
In addition, the rods have a plastic protector at their ends to prevent any damage to the fabric of the wing.
Nitinol is now featured in all our wings.
C2B System
Manoeuvrability has been improved with the new C2B system that is integrated into the risers, and which allows a three-liner wing to be flown as if it were a two-liner. Steering with the C-risers automatically includes the B-risers. As a result, the wing has a much more efficient, controlled and precise handling without degrading the shape of the profile.
Structured Middle Chord
Ninitol rods in the middle-rear part of the profile form the SMC. This technology gives much more solidity and stability to maintain its shape. The profile is taut at all times, without creases, and fully optimised for all flight phases. Increases performance and makes the wing much more durable over time.
Optimised C2B system
Hybrid 3/2-liner
IKS 1000 connection system
Improved DRS integration
Perfected aerodynamic profile
New Nitinol rod distribution
Stability at any angle of attack

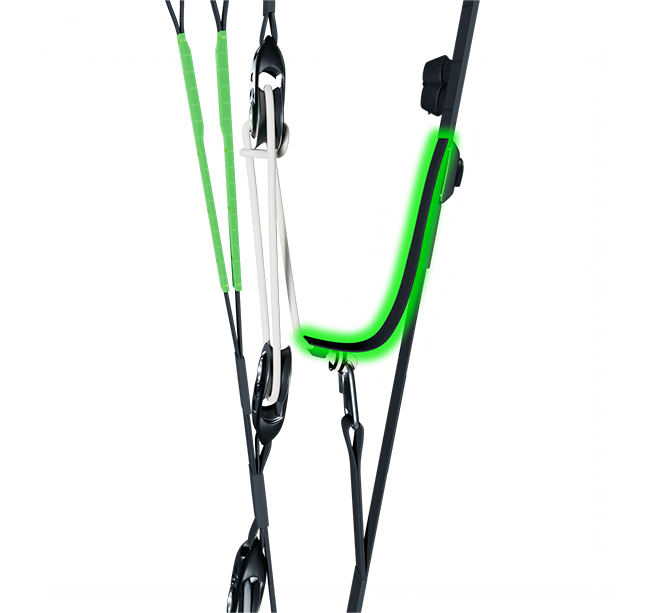

Optimised C2B system
The new riser-integrated C2B system allows this 3-liner to be flown as if it were a 2-liner, which has increased comfort. A handle lowers the B and C-risers at the same time. These are connected through a pulley system to maintain the optimal shape of the profile. This allows the glider to be flown and steered without degrading its shape, even at high speeds.

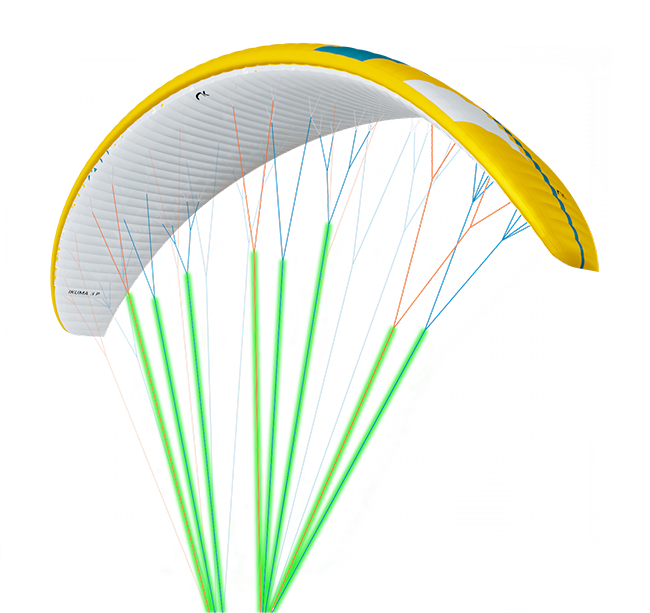

Hybrid 3/2-liner
Thanks to the hybrid 3/2-liner system, we have reduced drag by 8% and the total number of lines used. This new line layout does not affect the handling compared to the Ikuma 2 P.
IKS 1000 connection system
The Ikuma 3 P is supplied with the IKS 1000 as standard. This is a lightweight means to connect the risers to the lines. The system can hold up to 1,055 kg, which is well above the 550 kg of the classic 3 mm carabiner, and even weighs much less. This reduces the overall weight of the equipment while ensuring safety and durability.

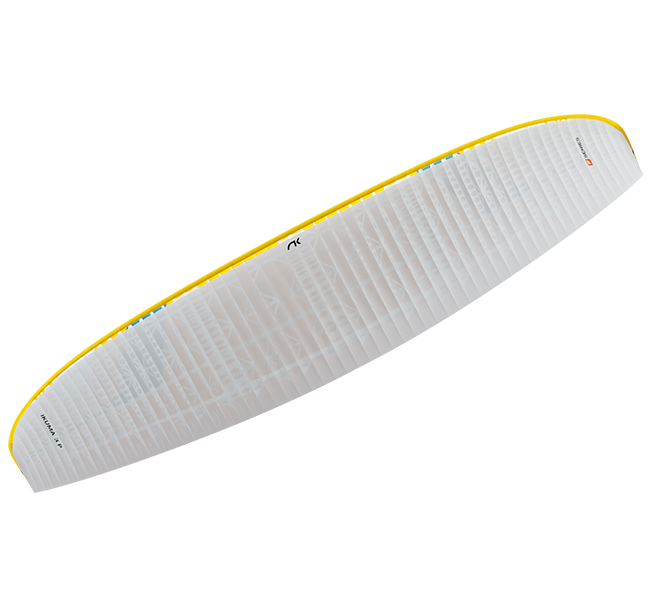

Improved DRS integration
The application of mini-ribs on the trailing edge reduces drag and improves the aerodynamic shape of the wing. The DRS technology has been optimised: the mini-ribs are integrated directly into the outer panels, eliminating external seams for a cleaner and more efficient profile.

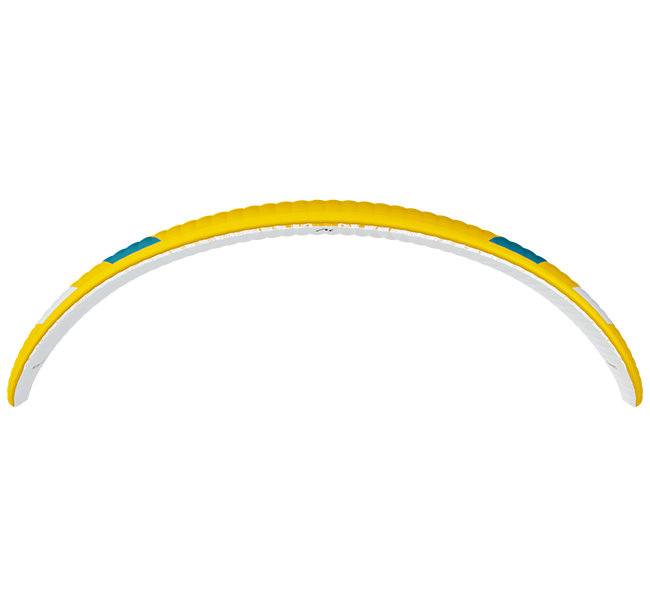

Perfected aerodynamic profile
The new profile of the Ikuma 3 P increases stability in both roll and pitch and further improves the overall performance of the wing.
New Nitinol rod distribution
The use of Nitinol rods (TNT technology) has been reduced by 18% to achieve a more compact packing.

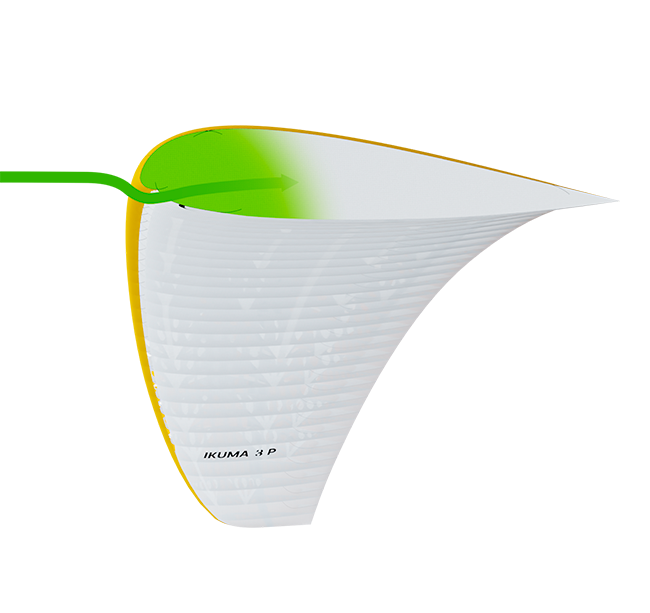

Stability at any angle of attack
The application of RAM technology ensures that the internal pressure of the wing is optimal and that the profile maintains its ideal shape in all flight conditions.
Three colours. Trendy colours.
Configure and order your wing. You can select standard colours or, at additional cost, you can also personalise it and/or add the logos of your choice. As you like it!
Technical specifications
| 20 | 22 | 24 | 26 | 28 | |||
|---|---|---|---|---|---|---|---|
| CELLS | NUMBER | 62 | 62 | 62 | 62 | 62 | |
| ASPECT RATIO | FLAT | 5,7 | 5,7 | 5,7 | 5,7 | 5,7 | |
| PROJECTED | 4,4 | 4,4 | 4,4 | 4,4 | 4,4 | ||
| AREA | FLAT | m² | 19,8 | 21,8 | 23,8 | 25,8 | 27,8 |
| PROJECTED | m² | 16,87 | 18,58 | 20,28 | 21,99 | 23,69 | |
| SPAN | FLAT | m | 10,62 | 11,15 | 11,65 | 12,13 | 12,59 |
| CHORD | MAXIMUM | m | 2,29 | 2,41 | 2,51 | 2,62 | 2,72 |
| LINES | TOTAL | m | 203 | 214 | 224 | 233 | 242 |
| MAIN | 2-1/4/2 | 2-1/4/2 | 2-1/4/2 | 2-1/4/2 | 2-1/4/2 | ||
| RISERS | NUMBER | A-A’/B/C | A-A’/B/C | A-A’/B/C | A-A’/B/C | A-A’/B/C | |
| SPEED-BAR | mm | 180 | 180 | 180 | 180 | 180 | |
| GLIDER WEIGHT | kg | 3,00 | 3,15 | 3,45 | 3,70 | 4,00 | |
| TOTAL WEIGHT IN FLIGHT | MIN-MAX | kg | 55-75 | 65-85 | 75-95 | 85-105 | 95-115 |
| CERTIFICATION |
EN/LTF B+
|
EN/LTF B+
|
EN/LTF B+
|
EN/LTF B+
|
EN/LTF B+
|
The total weight of the wing may differ ±2% due to variations in the weight of the fabric supplied by the manufacturers.
